SereneDrains Stainless Steel Linear Shower Drain Tile Insert Satin Gold, 24 Inch

SereneDrains Stainless Steel Linear Shower Drain Tile Insert Style 24″ Satin Gold

With the ‘Tile Insert’ design, you tile over the drain. This way you can’t see the shower drain when installed, you only see the trim around the tile where the water goes in the drain. please view the images to have a better understanding.

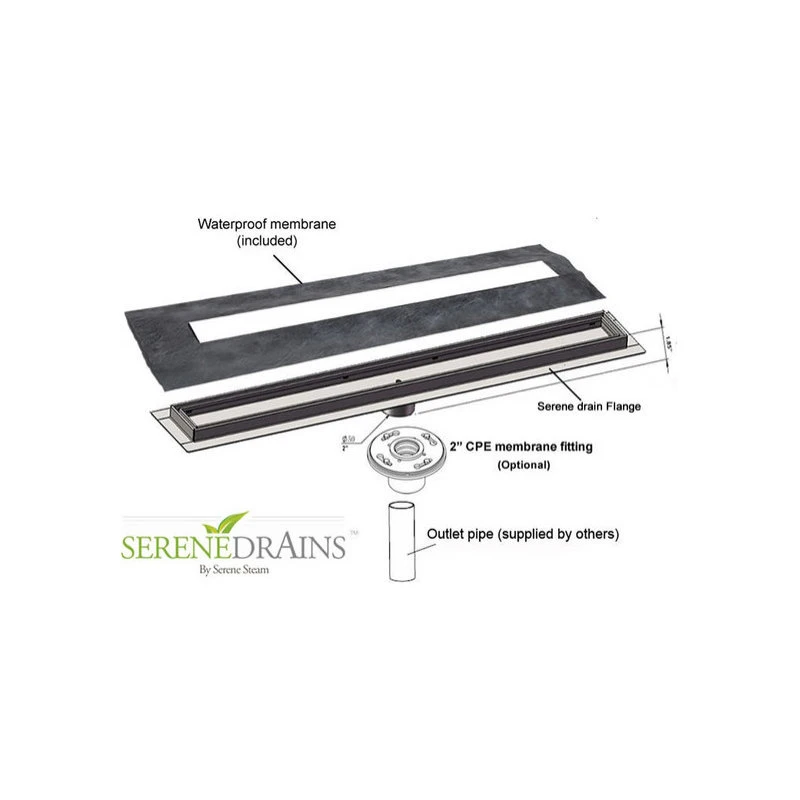

Complete Set: Channel Body, Stainless Steel Grate, Drain Puller, Waterproofing Membrane Sheet to place around the drain flange (not required but included).

• Technical –

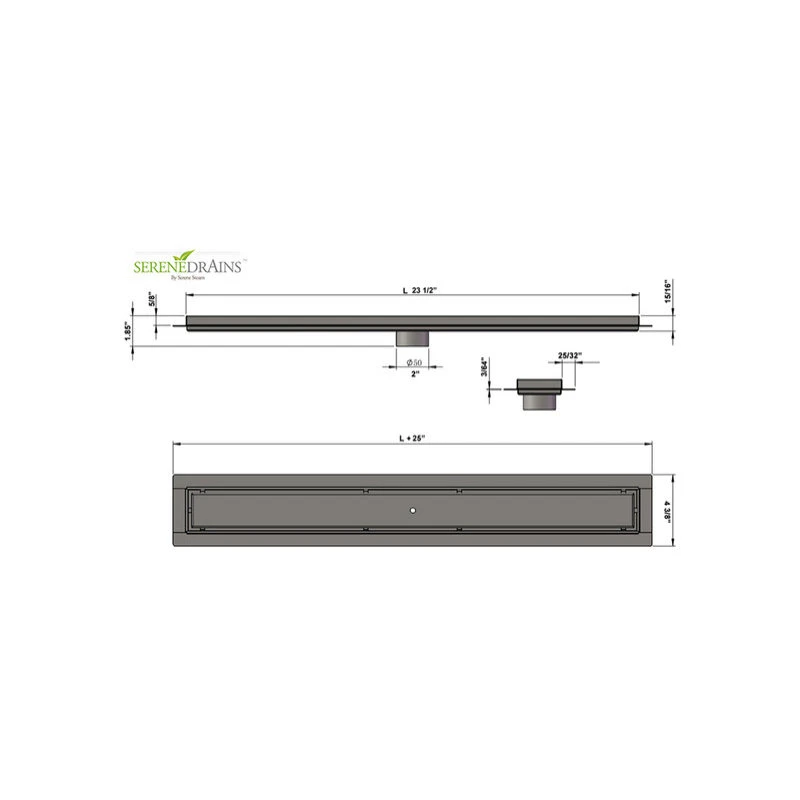

• Size: Length 23 1/2″ x 2 3/4″ (600mm) Intake sq. in: 14.96
• Available sizes: 16″, 24″, 30”, 35″, 39″, 47″, 59″
• Channel width: 2 3/4″ (70 mm)
• Flow rate: At entrance to shower – 6.3GPM (0.4 l/s); against the wall – 9.5GPM (0.6 l/s).
• Compatible with tiles up to 10mm depth (14mm lip)

Features –

• High Quality Materials: The Linear Shower Drain is made of 16 Gauge SS304 Stainless Steel Flange, Channel and Grate. Brushed Steel Finish protects the Linear Shower Drain from corrosion & rust.
• Durable, Solid and Smooth: The frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Linear Shower Drain a smooth touch to the feet. NO plastic parts.
• Easy Installation: The Shower Drain doesn’t have leveling feet. This is much more stable and makes installation easy by simply allowing you to rest the Flange on the floor edge. Removable grate for easy cleaning of the Linear Drain
• Water and Leak Proof: The body of the Flange is designed for use with all waterproofing materials such as: “Hot-Mop”, Liquid membranes, Sheet Membranes, Vinyl waterproofing etc.. Bodies are fully welded and leak tested prior to dispatch.
• Offset Drain Outlet available helps when moving the floor drain is difficult or impossible

In stock ship the same day
