SereneDrains Offset Linear Shower Side Drain Tile Insert Brushed Nickel, 30inch

Important Note: This is an Offset Linear Shower Drain (side outlet not central)

• SereneDrains Linear Shower Drains –
• High Quality Beautiful Linear Shower Drains in all sizes, colors and designs.
• Optimized for easy installation.

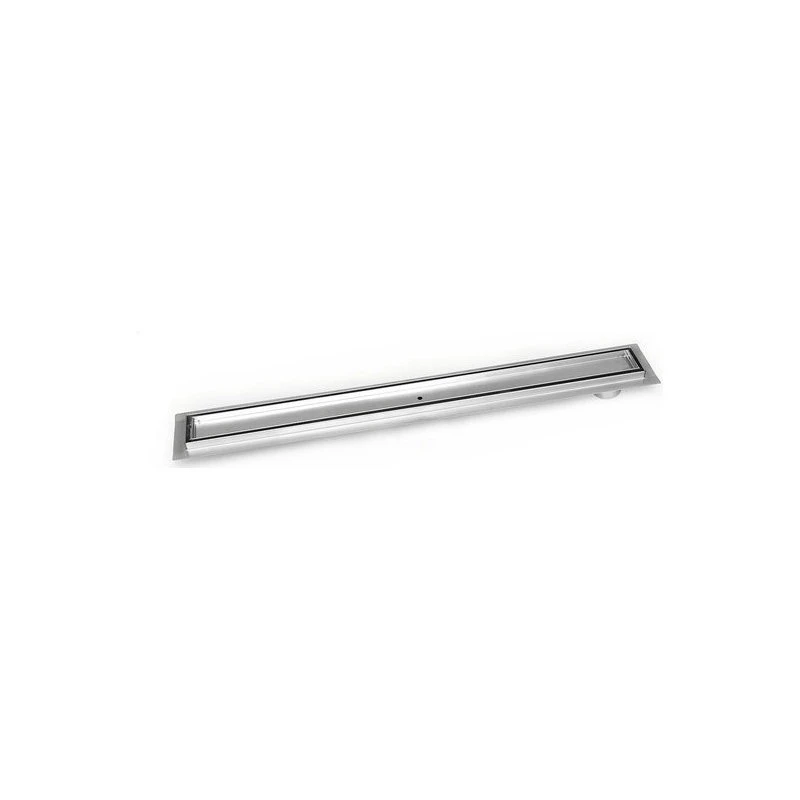

• SerneDrains Offset Linear Shower Drain Tile Insert Style 30 Inch
• COMPLETE SET: Channel Body, Drain Puller, Waterproofing Membrane Sheet to place around the drain flange (not required but included).

• Offset Drain: Offset Drain Outlet Helps when moving the floor drain is difficult or impossible

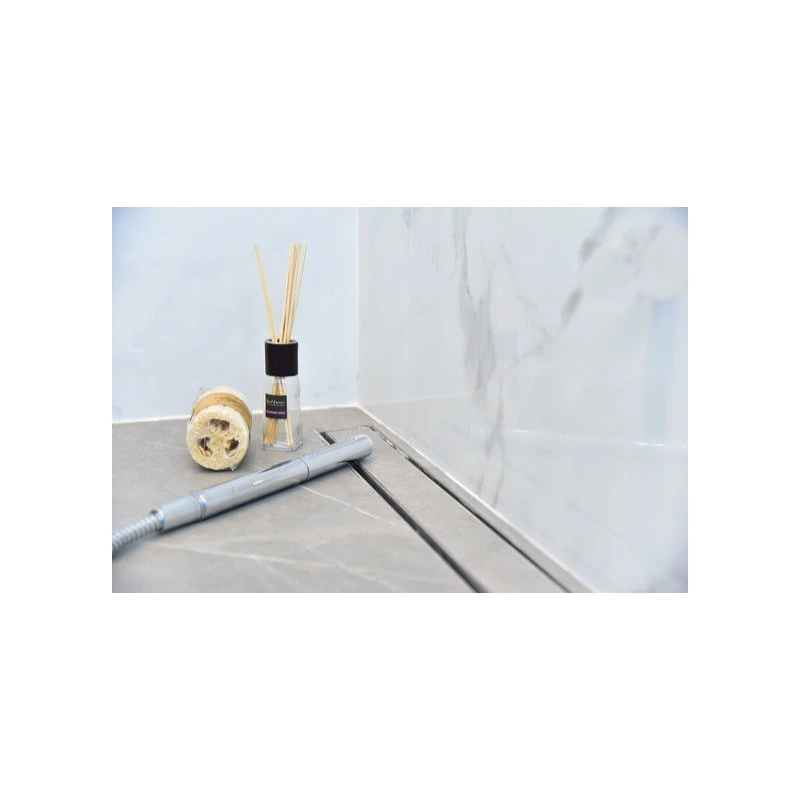

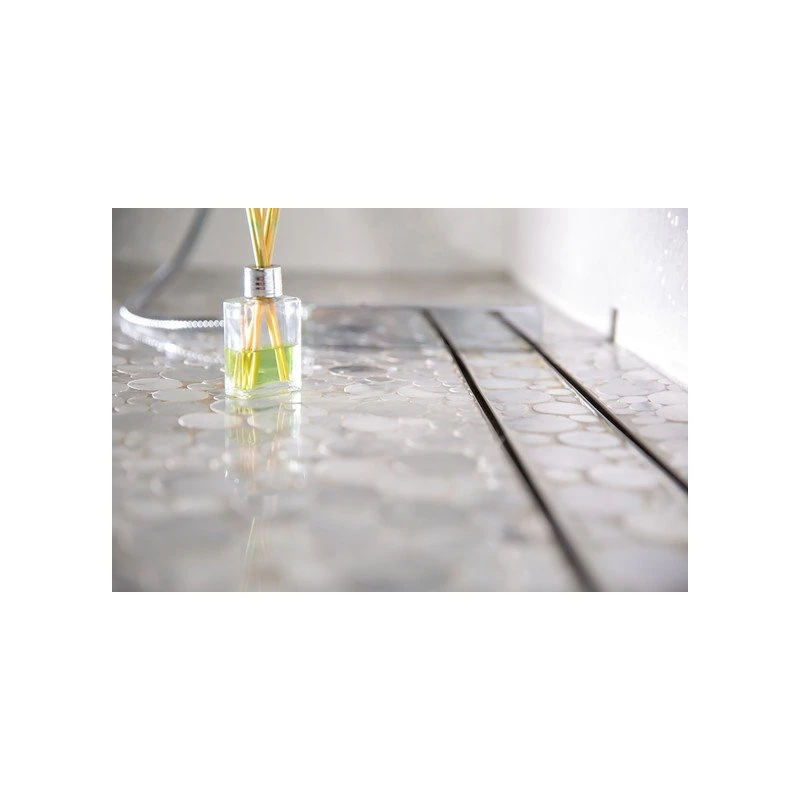

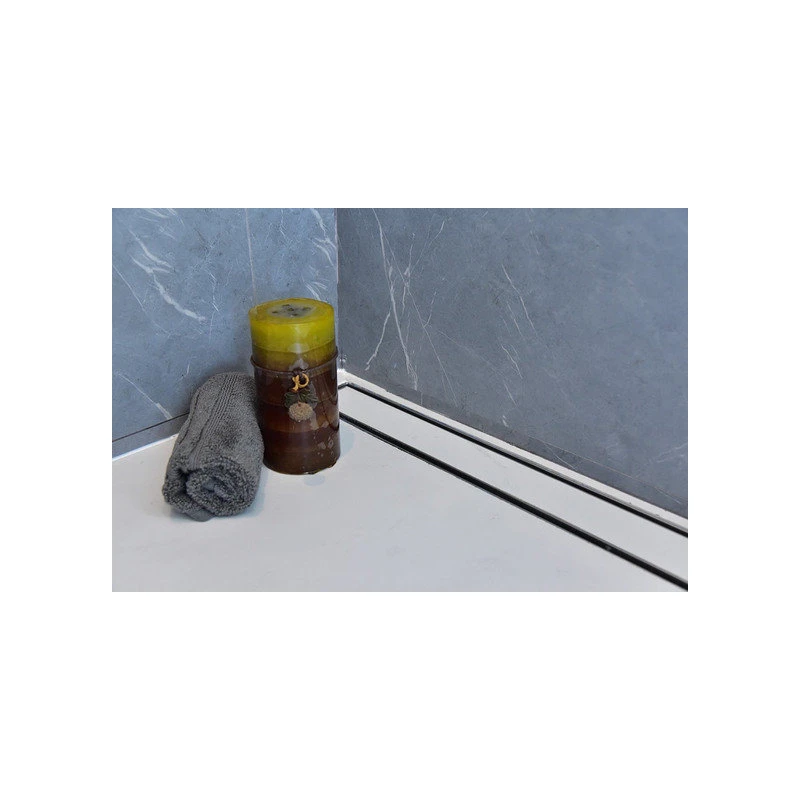

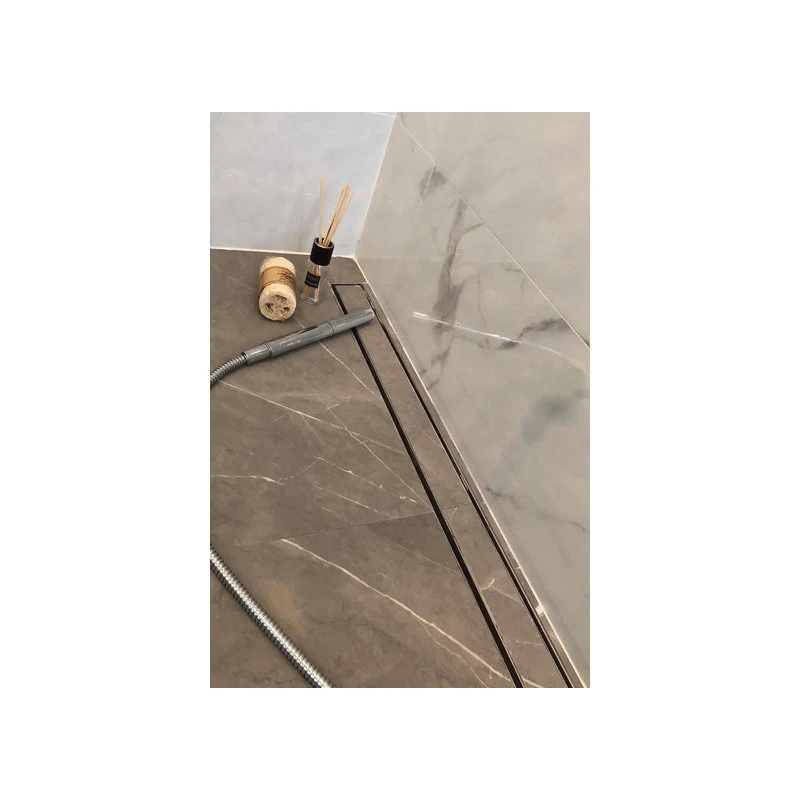

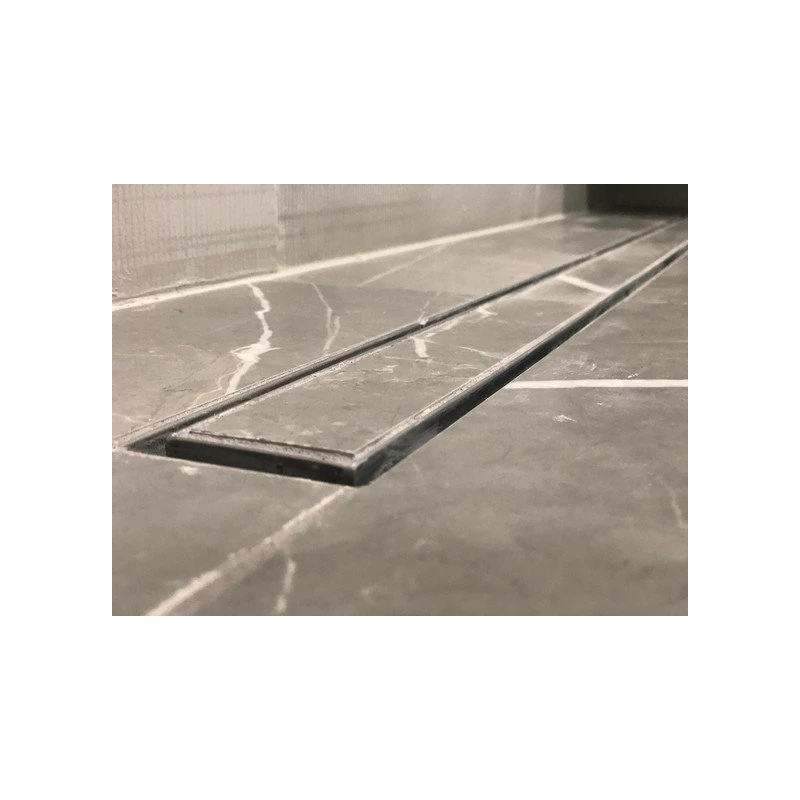

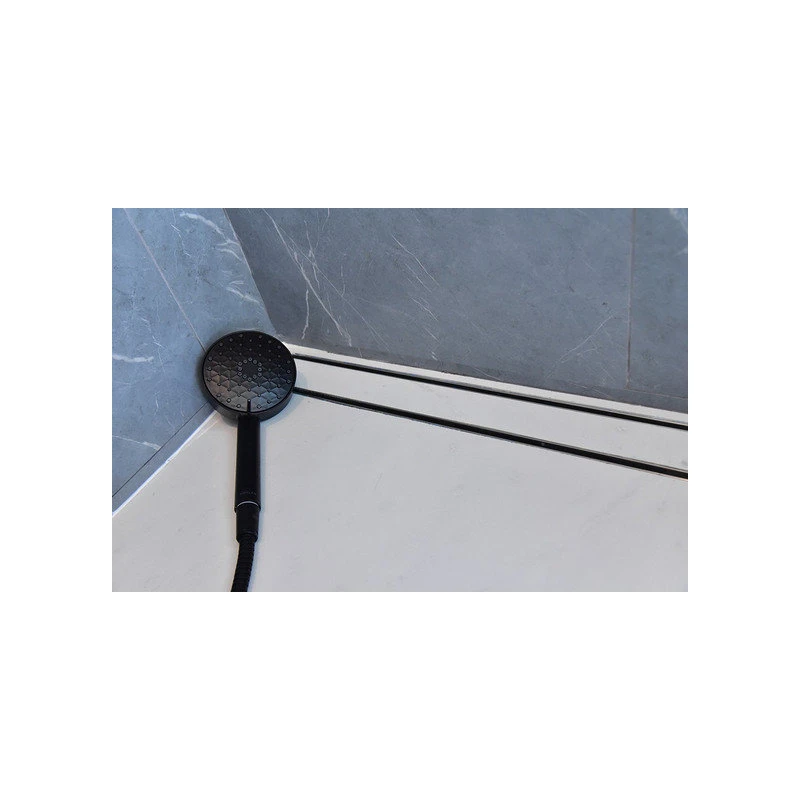

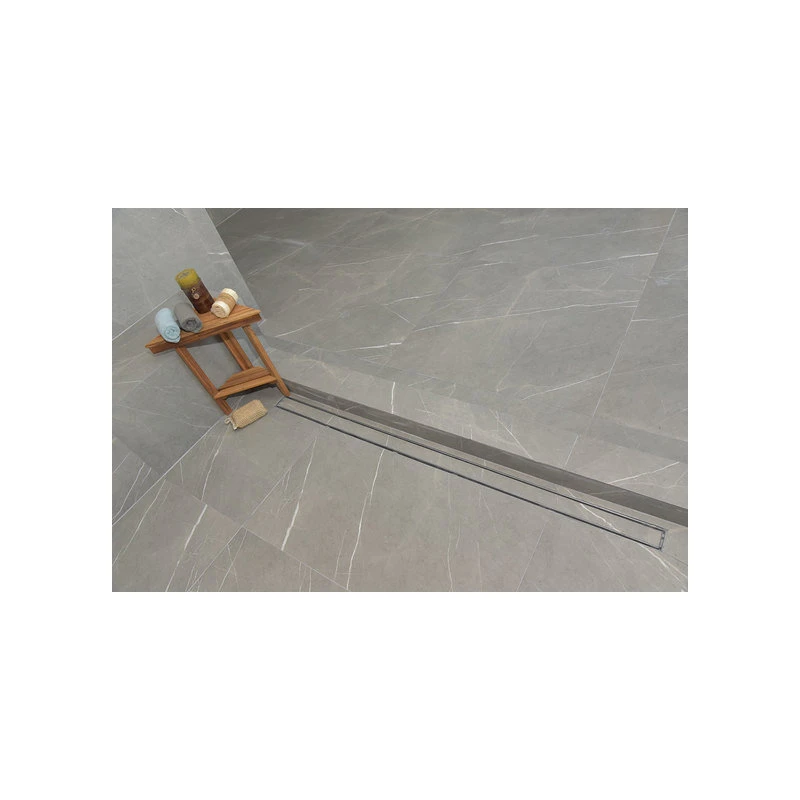

• Tile Insert: The Linear Shower Drain can be tiled with the same tile you are using for the floor

• Technical –

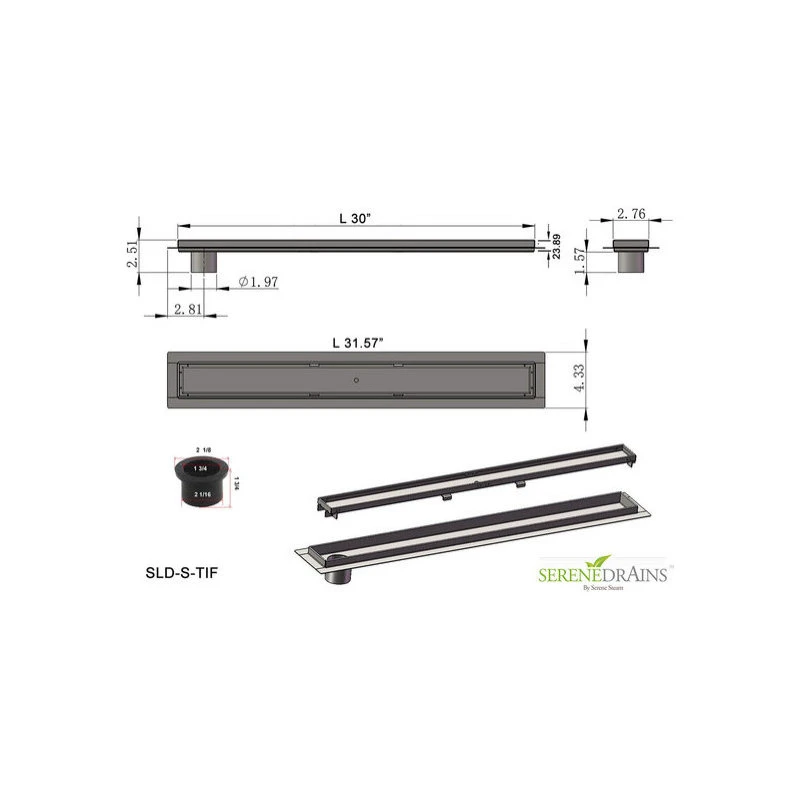

• Length 30″ x 2 3/4″ (762mm) Intake sq. in: 17.62
• Available sizes: 16″, 24″, 30”, 35″, 39″, 47″, 59″
• Channel width: 2 3/4″ (70 mm)
• Flow rate: at entrance of shower – 6.3GPM (0.4 l/s); against the wall – 9.5GPM (0.6 l/s).
• Compatible with tiles up to 10mm depth (14mm lip)

Features –

• High Quality Materials: The Offset Linear Shower Drain is made of 16 Gauge SS304 Stainless Steel Flange and Channel. Brushed Steel Finish protects the Offset Linear Shower Drain from corrosion & rust.
• Durable, Solid and Smooth: the frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Offset Linear Shower Drain a smooth touch to the feet. NO plastic parts.
• Easy Installation: The Offset Shower Drain doesn’t have leveling feet. This is much more stable and makes installation easy by simply allowing you to rest the Flange on the floor edge. Simply place cut tile on grate.
• Includes: Rubber Fitting. Optional: Shower Drain Base of Choice (ABS, PVC, Cast Iron and No-Hub Coupling).
• Water and Leak Proof: The body of the Flange is designed for use with all waterproofing materials such as: “Hot-Mop”, Liquid membranes, Sheet Membranes, Vinyl waterproofing etc.. Bodies are fully welded and leak tested prior to dispatch.
