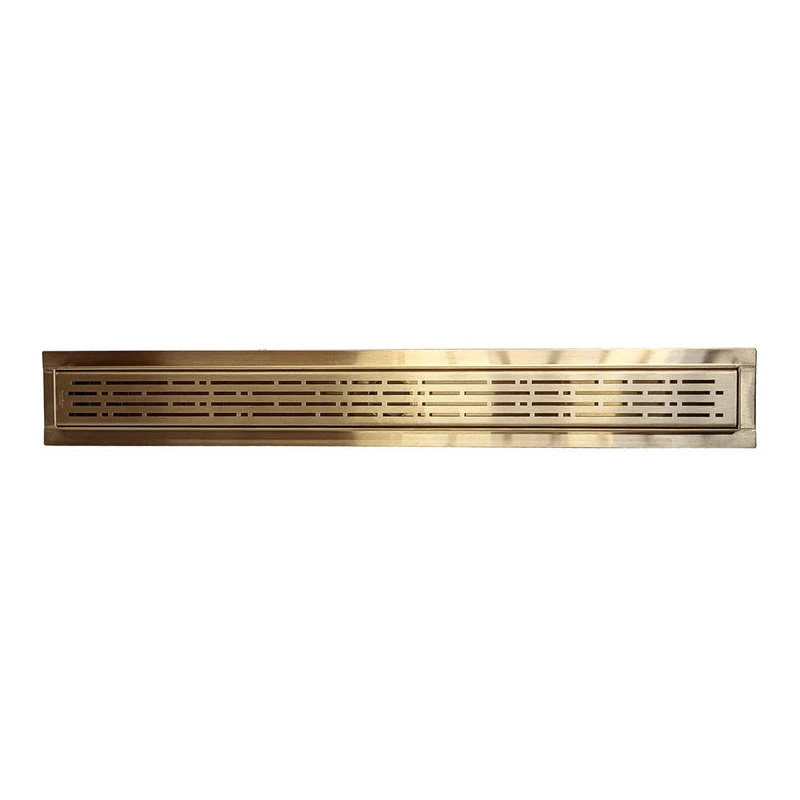

Satin Gold Linear Shower Drain Broken Lane Design By SereneDrains, 24 Inch

Satin Gold Linear Shower Drain Broken Lane Design by Serene Drains

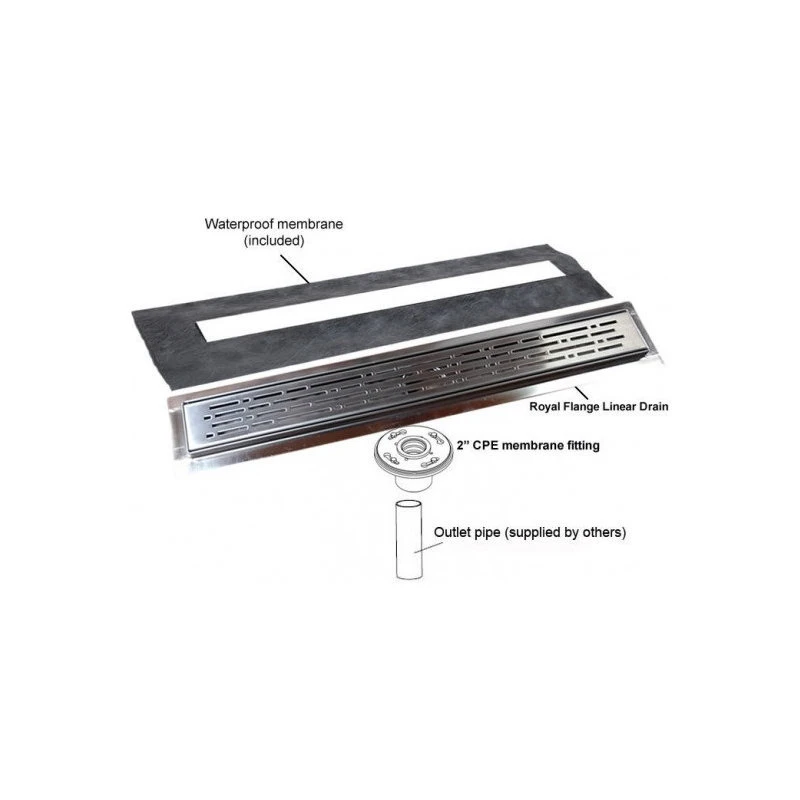

Drain Include: 100% stainless steel channel body & grate, drain rubber gasket, puller key, waterproofing membrane sheet around the drain flange (not require but included), Installation Instruction. Hair strainer NOT included.

Satin Gold Linear Shower Drain Broken Lane Design (Available in Brushed Nickle, Polished Chrome, Matte Black, Satin Gold). Luxurious superior quality stainless steel linear drains. Perfect for showers, master bathrooms, pools, hotels, spas and etc. In stock ready to ship. Free Shipping

• Available In: 16″, 24″, 30″, 35″, 39″, 47″, 59″.

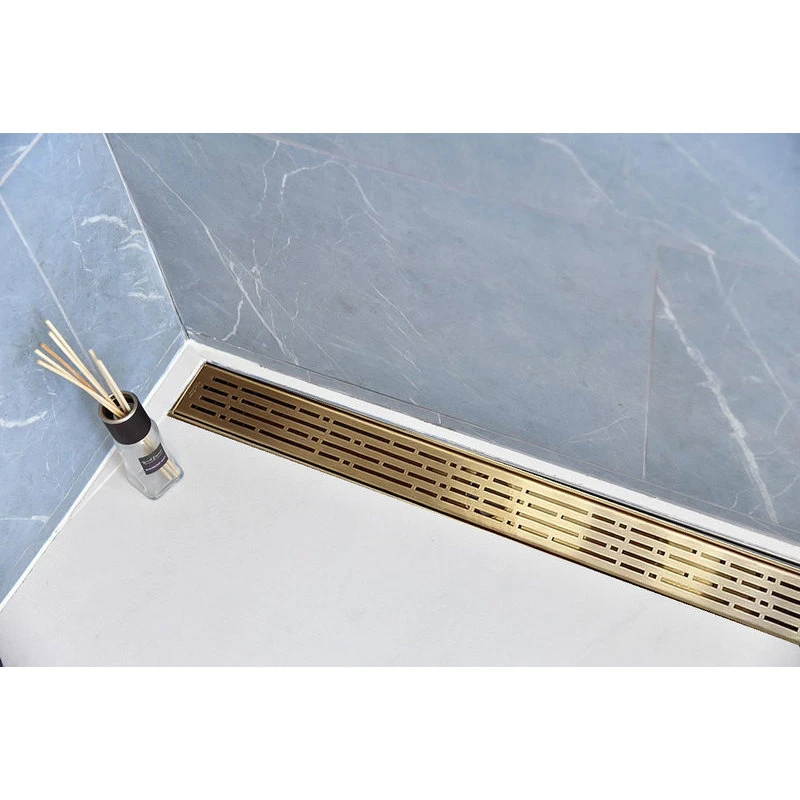

• Perfect for: wheelchair access and barrier-free showers (walk in floor plans).

Features:

• Electro polished finish. Bodies are fully welded and leak tested prior to dispatch.

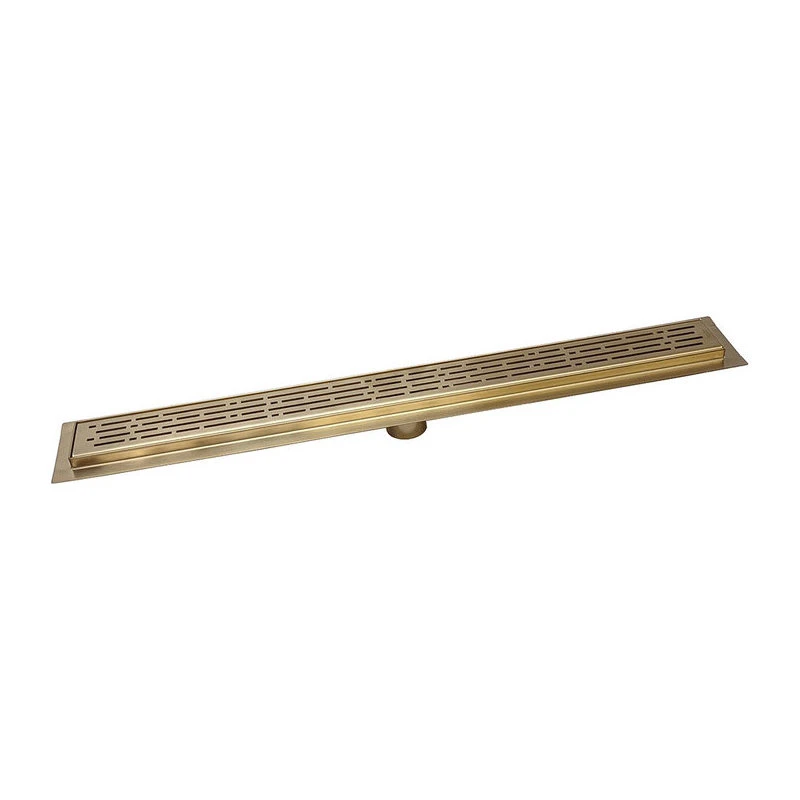

• 2 Inch diameter central vertical outlet, designed to be installed into any 2″ shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Pre-slope channel. Channel width: 2 3/4″ (70 mm).
• Sized to match standard 1/2″, 1″, 2, and 4″ tile without cutting.
• Drain grade is 16 gauge 304 stainless steel.
• Flow rate: at entrance of shower – 6.3GPM (0.4 l/s); against the wall – 9.5GPM (0.6 l/s).

Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

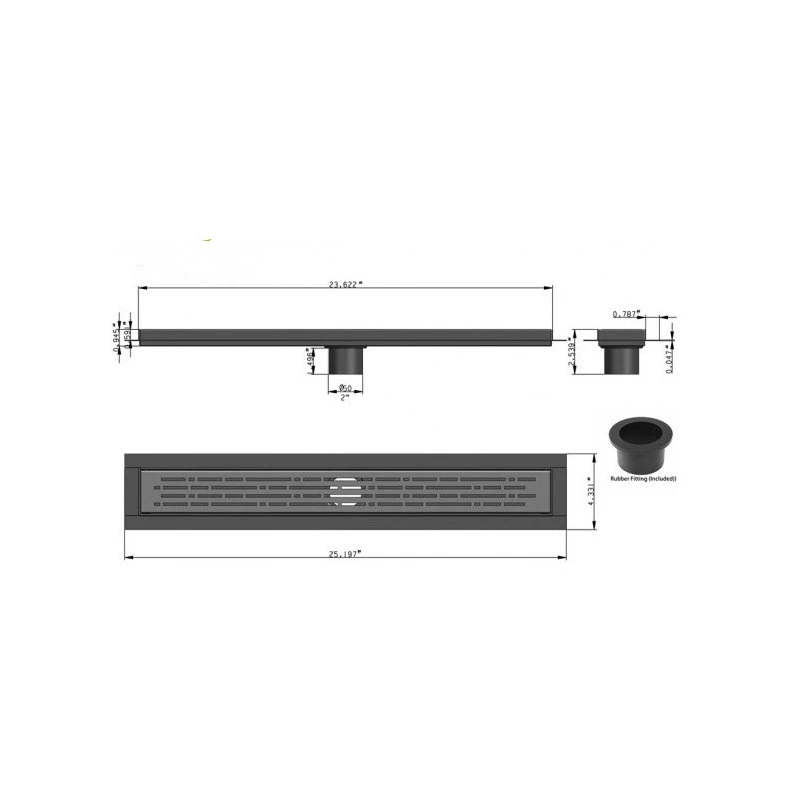

Dimensions:

• Length 15 3/4″ x 2 3/4″ (400mm) Intake sq. in: 12.38.
• Length 23 1/2″ x 2 3/4″ (600mm) Intake sq. in: 14.96.
• Length 30″ x 2 3/4″ (732mm) Intake sq. in: 17.62.
• Length 35 3/8″ x 2 3/4″ (900mm) Intake sq. in: 20.03.
• Length 39 3/8″ x 2 3/4″ (1000mm) Intake sq. in: 21.12.
• Length 47 1/4″ x 2 3/4″ (1200mm) Intake sq. in: 26.68.
• Length 59″ x 2 3/4″ (1500mm) Intake sq. in: 31.67.

Complete shower drain installation kits available. Contact us for contractors and quantity discounts
